Cleanroom FFU Fan Filter Unit HEPA Filter System Ceiling

Name: Cleanroom FFU Fan Filter Unit HEPA Filter System Ceiling
Brand: YaNing
Price: 100 USD

Best Cleanroom FFU Fan Filter Unit HEPA Filter System Ceiling wholesale

Brand Name : YaNing

Model Number : YN-FFU-1175

Certification : CE ISO

Place of Origin : China

MOQ : 1 units

Price : USD100-180/unit

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 20000units/month

Delivery Time : 7-15working days

Packaging Details : Carton+wooden case

Function : Clean Work Room

Application : 100 Lab / Laboratory Clean Room

HEPA Filter : H13 H14

Leadtime : 15-25 Days

Contact Now

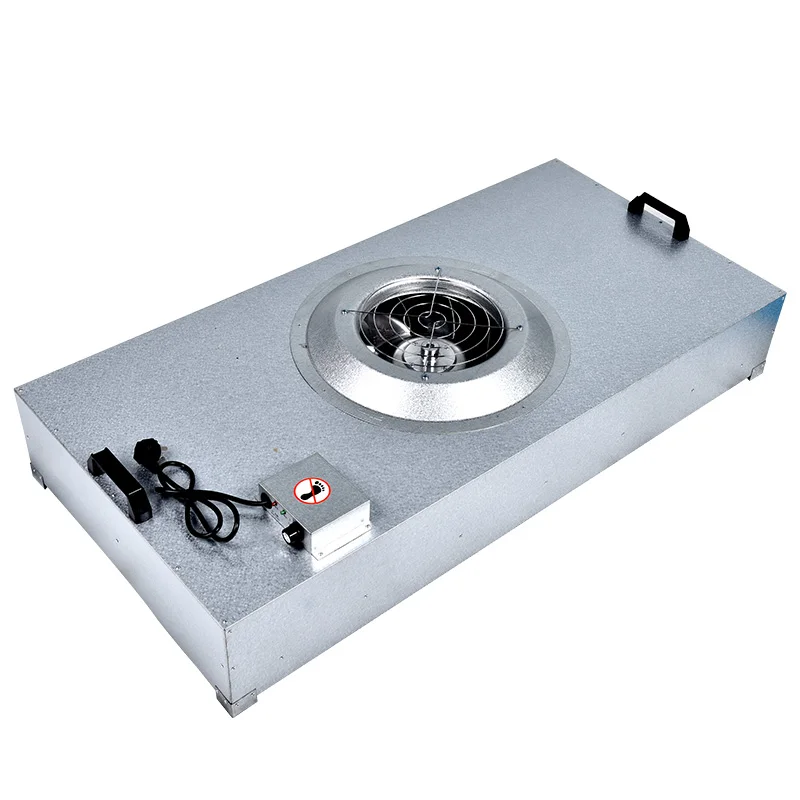

FFU fan filter unit the HEPA filter system ceiling of cleanroom

Product Description

Fan filter unit (FFU) is a ceiling unit, used for turbulence and laminar flow clean room. According to the customer required specifications,we have the capability to do OEM/ODM production.It can fit for many ceiling skeleton, to achieve the clean grade 1000 to 1 level requirements.The fan filter unit could deliver the clean air with low noice and very little cost.With this unit, high quality air can be delivered to clean rooms.

FFU is a type of unit used for filtering laminar air and supplying clean air.
FFU is the core element for making cleanroom products of different classes, including clean booth, clean bench and clean room
FFU is a laminar flow filter unit which can be installed on ceilling to save space

Product Feature:
1. Low operation cost and power consumption.
2. Built in duct diversion system less noise and pressure loss .
3. Filters optional :HEPA, ULPA.
4. The fan filtration unit adopts high efficiency centrifugal fan to provide high air volume.High static pressure
conditions,working life requirements up to more than 50,000 hours.
5. Suitable for use in class Class 1-1000 clean room.
6. It is especially suitable for assembling into ultra-clean production line. It can be arranged as a single set for use according to the process requirements, or multiple sets can be connected in series to form a 100-level assembly line.

7. Before leaving the factory, the products are scanned and detected one by one with dust particle counter in accordance with the us federal standard to ensure the quality.

Model		YN-FFU-575	YN-FFU-1175	YN-FFU-1200	YN-FFU-1175D
Cabinet Size		575×875×230	575×1175×230	600×1200×230	1175×1175×230
Cabinet Material		Epoxy powder coated steel/Galvanized steel /Stainless steel
Air Flow(m3/h)		800	1100	1200	2000
Noise(dB)		56	56	58	58
Air Velocity		0.3~0.5m/s	0.3~0.5m/s	0.3~0.5m/s	0.3~0.5m/s
HEPA Filter	Size	570×870×69	570×1170×69	610×1220×69	1170×1170×230
	Efficiency	99.995%0.3µm	99.995%0.3µm	99.995%0.3µm	99.995%0.3µm
	Frame	Aluminum
	Initial Pressure Drop	220pa/0.45m/s	220pa/0.45m/s	220pa/0.45m/s	220pa/0.45m/s
Fan	Power Supply	220V/50hz	220V/50hz	220V/50hz	220V/50hz
	Type	Aluminum turbofan
	Vibration	0.2~0.5mm/s	0.2~0.5mm/s	0.2~0.5mm/s	0.2~0.5mm/s
Total Power		170W	170W	210W	275W
Weight		24kg	28kg	31kg	47kg

Packaging & Shipping
